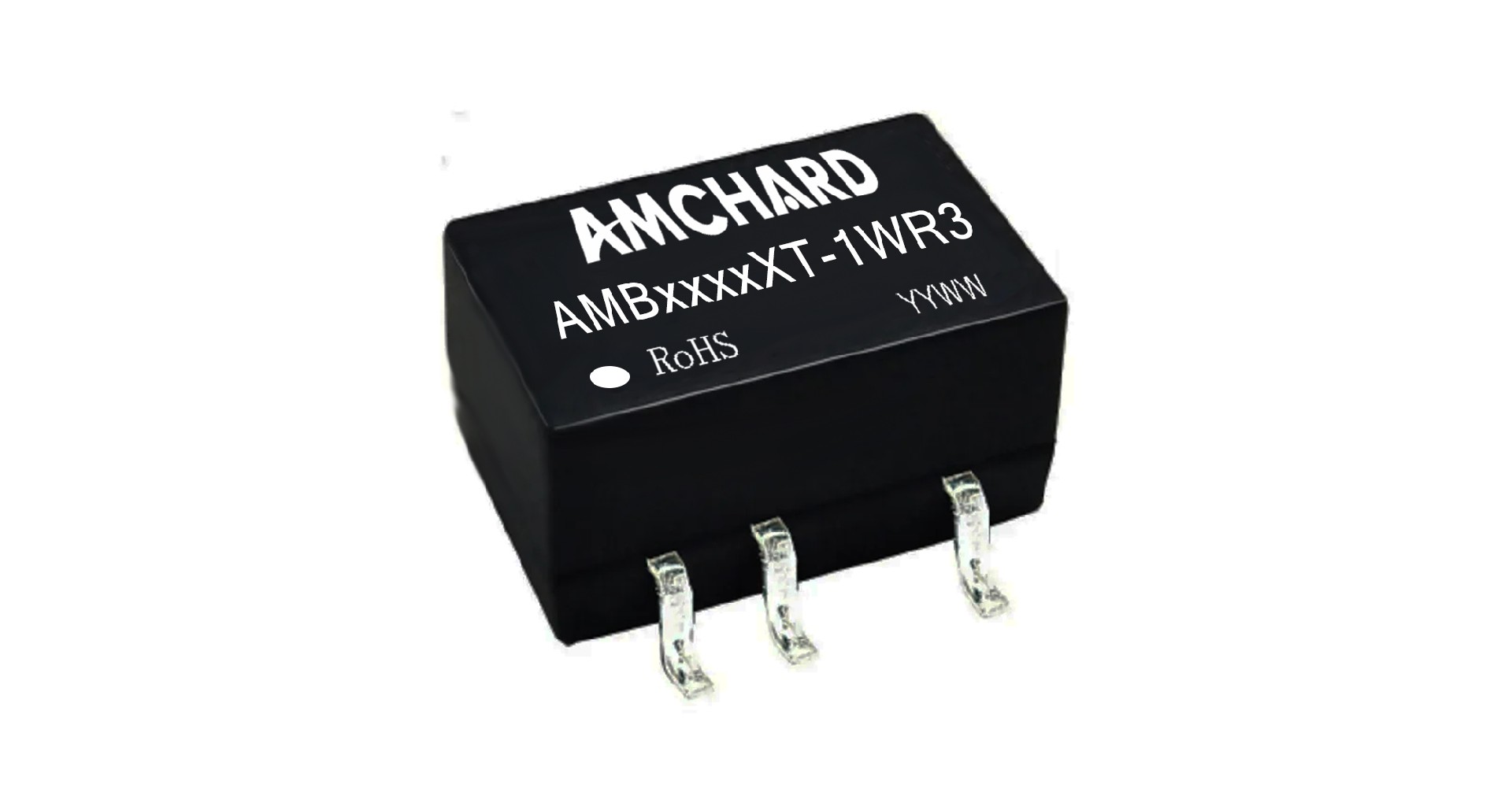

AMB_XT-1WR3 series
Product Description
| Series | Product model | Power | Isolation | Package | Channel NO. | Input voltage | Output voltage | Output current | Full load efficiency | Maximum capacity load |
| AMB03xxXT-1WR3 | AMB0303XT-1WR3 | 1W | 1500VDC | SMD | 1 | 3.3VDC | 3.3VDC | 303mA | 75% | 1200µF |
| AMB0305XT-1WR3 | 1W | 1500VDC | SMD | 1 | 3.3VDC | 5VDC | 200mA | 84% | 1200µF | |
| AMB0309XT-1WR3 | 1W | 1500VDC | SMD | 1 | 3.3VDC | 9VDC | 111mA | 84% | 470µF | |
| AMB0312XT-1WR3 | 1W | 1500VDC | SMD | 1 | 3.3VDC | 12VDC | 83mA | 84% | 220µF | |
| AMB0315XT-1WR3 | 1W | 1500VDC | SMD | 1 | 3.3VDC | 15VDC | 67mA | 84% | 220µF | |
| AMB0324XT-1WR3 | 1W | 1500VDC | SMD | 1 | 3.3VDC | 24VDC | 42mA | 85% | 100µF | |
| AMB05xxXT-1WR3 | AMB0503XT-1WR3 | 1W | 1500VDC | SMD | 1 | 5VDC | 3.3VDC | 303mA | 75% | 1200µF |
| AMB0505XT-1WR3 | 1W | 1500VDC | SMD | 1 | 5VDC | 5VDC | 200mA | 84% | 1200µF | |
| AMB0509XT-1WR3 | 1W | 1500VDC | SMD | 1 | 5VDC | 9VDC | 111mA | 84% | 470µF | |
| AMB0512XT-1WR3 | 1W | 1500VDC | SMD | 1 | 5VDC | 12VDC | 83mA | 84% | 220µF | |
| AMB0515XT-1WR3 | 1W | 1500VDC | SMD | 1 | 5VDC | 15VDC | 67mA | 84% | 220µF | |
| AMB0524XT-1WR3 | 1W | 1500VDC | SMD | 1 | 5VDC | 24VDC | 42mA | 85% | 100µF | |
| AMB09xxXT-1WR3 | AMB0903XT-1WR3 | 1W | 1500VDC | SMD | 1 | 9VDC | 3.3VDC | 303mA | 75% | 1200µF |
| AMB0905XT-1WR3 | 1W | 1500VDC | SMD | 1 | 9VDC | 5VDC | 200mA | 84% | 1200µF | |
| AMB0909XT-1WR3 | 1W | 1500VDC | SMD | 1 | 9VDC | 9VDC | 111mA | 84% | 470µF | |
| AMB0912XT-1WR3 | 1W | 1500VDC | SMD | 1 | 9VDC | 12VDC | 83mA | 84% | 220µF | |
| AMB0915XT-1WR3 | 1W | 1500VDC | SMD | 1 | 9VDC | 15VDC | 67mA | 84% | 220µF | |
| AMB0924XT-1WR3 | 1W | 1500VDC | SMD | 1 | 9VDC | 24VDC | 42mA | 85% | 100µF | |
| AMB12xxXT-1WR3 | AMB1203XT-1WR3 | 1W | 1500VDC | SMD | 1 | 12VDC | 3.3VDC | 303mA | 75% | 1200µF |
| AMB1205XT-1WR3 | 1W | 1500VDC | SMD | 1 | 12VDC | 5VDC | 200mA | 84% | 1200µF | |
| AMB1209XT-1WR3 | 1W | 1500VDC | SMD | 1 | 12VDC | 9VDC | 111mA | 84% | 470µF | |
| AMB1212XT-1WR3 | 1W | 1500VDC | SMD | 1 | 12VDC | 12VDC | 83mA | 84% | 220µF | |
| AMB1215XT-1WR3 | 1W | 1500VDC | SMD | 1 | 12VDC | 15VDC | 67mA | 84% | 220µF | |
| AMB1224XT-1WR3 | 1W | 1500VDC | SMD | 1 | 12VDC | 24VDC | 42mA | 85% | 100µF | |
| AMB15xxXT-1WR3 | AMB1503XT-1WR3 | 1W | 1500VDC | SMD | 1 | 15VDC | 3.3VDC | 303mA | 75% | 1200µF |
| AMB1505XT-1WR3 | 1W | 1500VDC | SMD | 1 | 15VDC | 5VDC | 200mA | 84% | 1200µF | |
| AMB1509XT-1WR3 | 1W | 1500VDC | SMD | 1 | 15VDC | 9VDC | 111mA | 84% | 470µF | |
| AMB1512XT-1WR3 | 1W | 1500VDC | SMD | 1 | 15VDC | 12VDC | 83mA | 84% | 220µF | |
| AMB1515XT-1WR3 | 1W | 1500VDC | SMD | 1 | 15VDC | 15VDC | 67mA | 84% | 220µF | |
| AMB1524XT-1WR3 | 1W | 1500VDC | SMD | 1 | 15VDC | 24VDC | 42mA | 85% | 100µF | |
| AMB24xxXT-1WR3 | AMB2403XT-1WR3 | 1W | 1500VDC | SMD | 1 | 24VDC | 3.3VDC | 303mA | 75% | 1200µF |
| AMB2405XT-1WR3 | 1W | 1500VDC | SMD | 1 | 24VDC | 5VDC | 200mA | 84% | 1200µF | |
| AMB2409XT-1WR3 | 1W | 1500VDC | SMD | 1 | 24VDC | 9VDC | 111mA | 84% | 470µF | |
| AMB2412XT-1WR3 | 1W | 1500VDC | SMD | 1 | 24VDC | 12VDC | 83mA | 84% | 220µF | |
| AMB2415XT-1WR3 | 1W | 1500VDC | SMD | 1 | 24VDC | 15VDC | 67mA | 84% | 220µF | |
| AMB2424XT-1WR3 | 1W | 1500VDC | SMD | 1 | 24VDC | 24VDC | 42mA | 85% | 100µF |
